Technical specifications

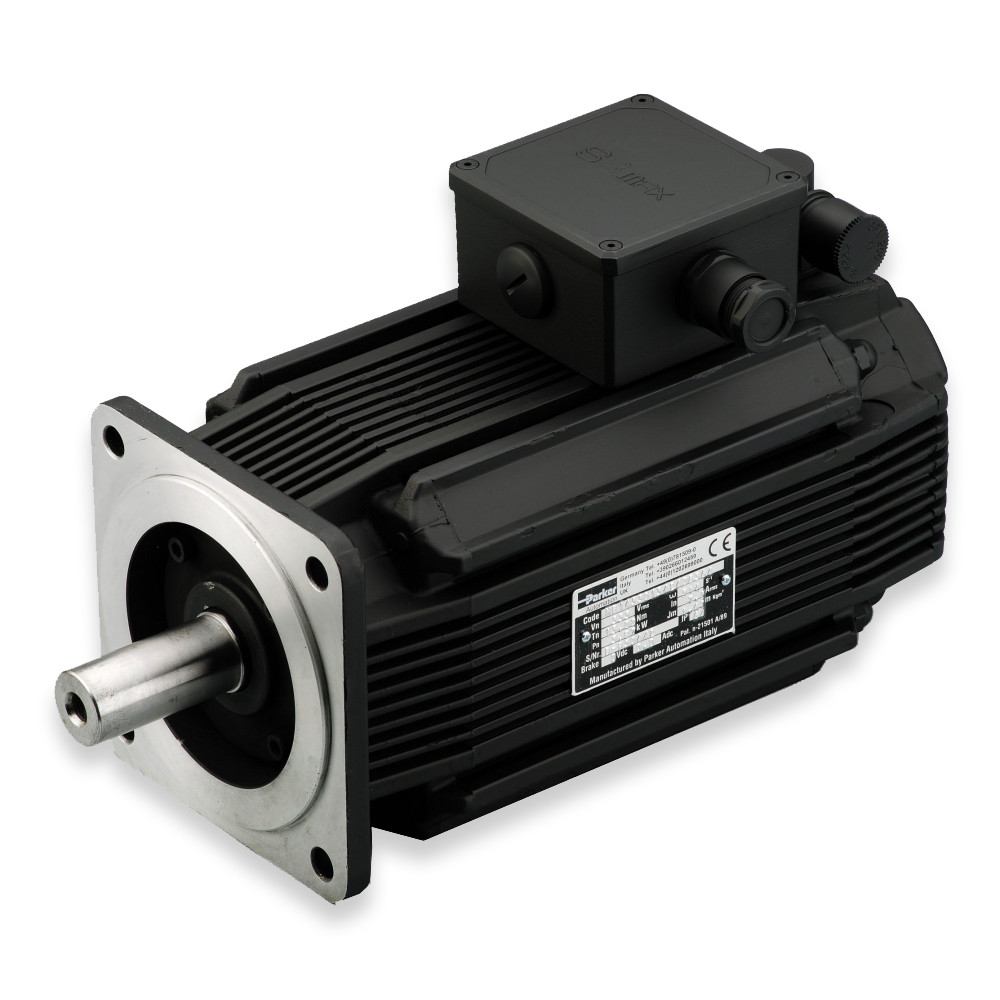

- Permanent magnet synchronous brushless servo motor
- Rotor with surface NdFeB magnets
- Feedback options: resolver, incremental encoder, EnDat absolute encoder (single-turn), EnDat absolute encoder (multi-turn), Hiperface absolute encoder (single-turn), Hiperface absolute encoder (multi-turn)
- Number of poles: 4 (MH56, MH70), 8 (MH105, MH145, MH205, MH265)
- Continuous torque 0.2 – 269 Nm
- Peak torque 1.3 – 857 Nm
- Speeds up to 10,000 min-1
- Power range: 0.5 – 67 kW
- 75 models across 6 frame sizes, (56, 70, 105, 145, 205 and 265 mm)
- Shaft and flange size flexibility
- Cooling options: natural convection, self ventilation (shaft mounted fan), forced ventilation (electric fan) for MH105, MH145 and MH205
- Compatible with Parker (Compax3 series) servo drives
- Protection level (IEC60034-5) is IP64. IP65 is an option.
- ATEX certification for MHX105 and MHX145
- Voltage supply 230/400 – 480 VAC but other voltages are available on request
- Other options: holding brake, thermal protection, increased inertia, second shaft, external feedback
Quin has over 20 years of experience in specifying, installing, and supporting Parker (SBC divisione) motors and will be happy to advise on a suitable motor for your application.
